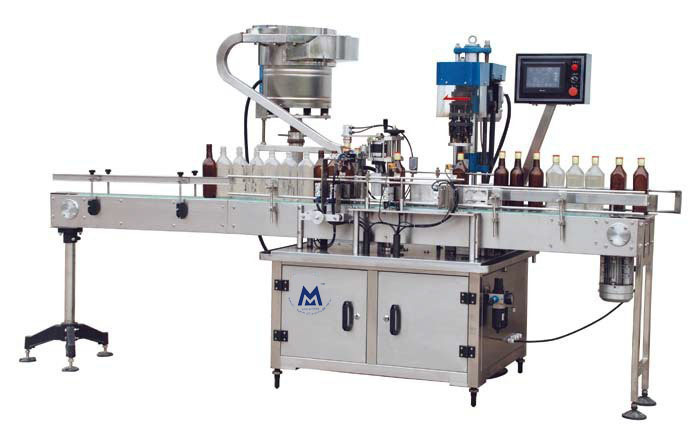

FXG-B單頭軋蓋機

   本機是針對金屬蓋所設計的帶理蓋裝置的軋蓋機。機械手抓蓋器將理好的蓋放置被旋蓋的瓶口，由機械手抓蓋器先進行一次壓蓋，再經旋蓋頭進行二次緊蓋。本機適用于食品、飲料、化工、醫藥、農藥等金屬蓋的軋蓋。符合GMP要求。



主要參數：

1.適用瓶高：150mm-270mm

2.適用蓋徑：根據客戶要求定制

3.生產速度：≤2400瓶/小時

4.電源：380V 三相四線

5.總功率：1.5KW

6.工作氣壓：0.5MPa-0.7MPa

7.耗氣量：0.6 m3/min

8.外形尺寸：3000mm×1100mm×1900mm

9.機器重量：400kg



FXG-B Automatic Capping Machine

This machine is designed for metal caps. After trimming caps, the manipulator grabs and presses the cap on the bottleneck, and the capping device tightens it. It is in accords with GMP, suitable for the industries such as foods, drink, chemicals, medicines, pesticides, etc.

Technical parameters

1.Suitable bottle height :150-270mm

2.Cap dia.: According to the customer requirement

3.Speed: ≤2400 bottles/ hour

4.Voltage: 380 V, three-phase and four-wire

5.Power : 1.5 KW

6.Air pressure: 0.5-0.7Mpa

7.Air consumption: 0.6 m3/min

8.Dimensions: 3000*1100*1900mm

9.Weight:400kg
