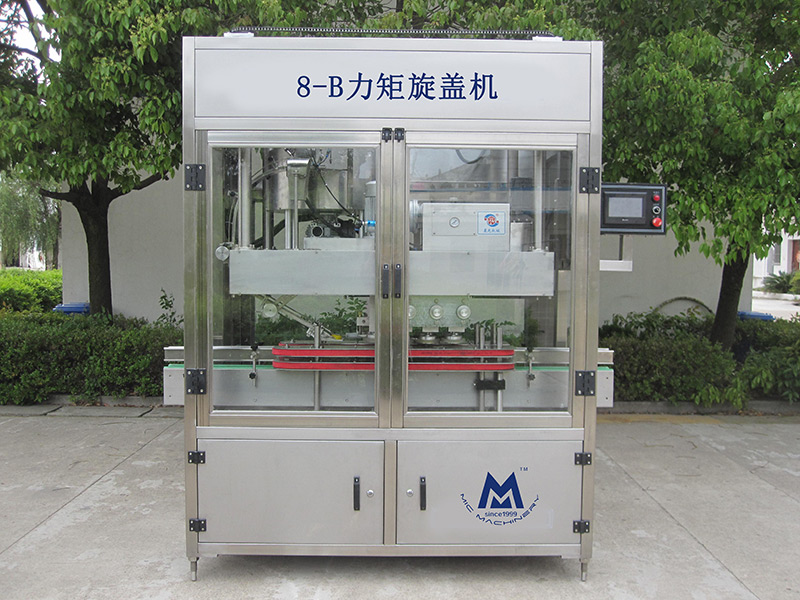

FXZ-8-B力矩旋蓋機

本機是在FXZ-6直列式旋蓋機基礎上優化改進產品。其主要優點：前段3組輪采用滾蓋，（可調整旋緊的一致性）進行初旋，后段1組輪采用力矩旋蓋進行精確旋緊，從而保證了一致性的力矩。對于大小不同瓶蓋可調整力矩輪的氣壓，即可達到所需的相應力矩要求。該機除有歪蓋處理、無蓋處理外，還配有倒蓋裝置，通過此“倒蓋裝置”可以使蓋與瓶更好地配合，以便順利進入旋蓋。該機也配備無鋁箔剔除裝置，無鋁箔的蓋在下蓋前被自動剔除，確保了鋁箔的在蓋率為100%。該機采用了PLC控制系統，實現數據存儲，隨時可以調用，能快速改變包裝規格。本機符合GMP要求。



主要參數：

1.旋蓋輪數：8輪

2.電源：380V三相四線

3. 總功率： 2.5KW

4. 適用瓶徑：Ф40mm-Ф90mm

5. 適用蓋徑：Ф20mm-Ф70mm

6. 理蓋合格率：99.99%

7. 生產速度：≤8000瓶/小時

8. 工作氣壓：0.55MPa-0.65MPa

9. 耗氣量：0.6 m3/min

10. 外形尺寸：2000mm ×1058mm ×2995mm

11. 機器重量：500 kg





FXZ-8-B Torque capping machine

This machine adopts the PLC system to store the data. It can change the packing specifications quickly. The torque plays an important role in the sealing quality. The machine twists the caps through the first capping part, then screws accurately through the second torque capping part. Adjusting the pressure of torque wheels according to the different caps, it can guarantee the consistency of torque and meets the requirements of different caps easily. This machine can deal with the inclined cap and non-cap. Cap reverse device can match the cap and the bottle well

An extra non-foil rejecting device can be selected; it can reject the caps without the aluminum foil, to achieve the 100% accuracy of foil inside the cap. It is in accords with GMP.

Technical parameters:

1、Capping wheel: 8

2、Voltage: 380V, three-phase and four-wire

3、Power: 2.5KW

4、Suitable bottle dia.：Φ40- 90mm

5、Suitable cap dia.：Φ20- 70mm

6、Accuracy: 99.99%

7、Speed：≤8000bottles/hour

8、Air pressure: 0.55-0.65Mpa

9、Air consumption: 0.6m3/min

10、Dimensions：2000*1058*2995mm

11、Weight：500kg
